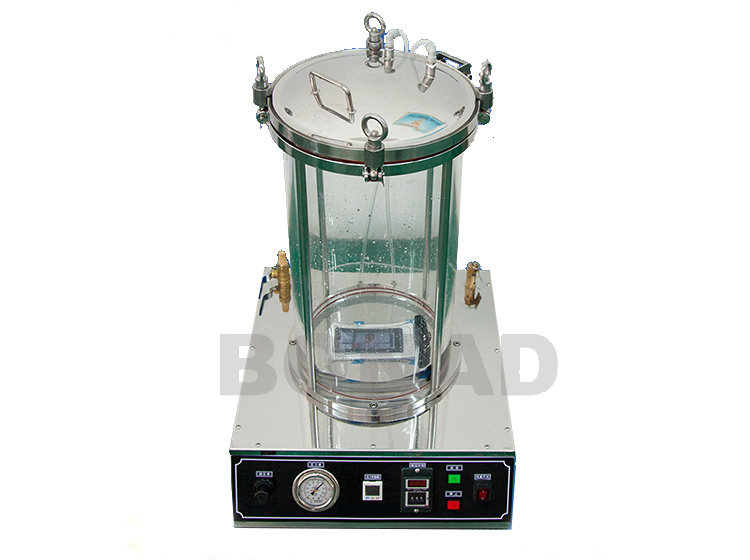

IEC60529 IPX8 Pressure immersion test machine
Test Standard:
Compliance with IEC60529:2001 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "Enclosure Protection Class (IP Code)" section 14.2.8 and GB7000.1 "Luminaires Part 1: General Requirements and Tests" 9.2.9 Terms and conditions.
Usage:
The main function of this equipment is to test the physics and other related performances of the products under conditions of simulated rain and weather in products such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles, and their parts and components. After the test, the quality of the product can be judged through the verification to meet the requirements, so that the product can be used in design, improvement, verification and factory inspection.
Features:
1, suitable for IPX8 product testing.
2. The IPX8 pressure soaking test device is fully imported with plexiglass, transparent (easy to observe the testing condition of the test sample), and has stronger endurance.
3, the chassis is all welded with stainless steel material, rust and beautiful appearance, human design (the height of the lid just facilitate the operation of the lid and open the lid to observe the test, the panel 45 degrees bevel mode button operation)
4, special silicone seals (elasticity never aging, a seal can be used for ten years).
5, all electronic control components imported LG, Panasonic, Omron, Anliang and other brands, pneumatic components, including gas joints all procurement Taiwan original Ya Deke, the major brands of components is the fundamental guarantee of equipment life and reliability.
6. There is a time control function, and the set time is 0-999 minutes. When the test time arrives, the supply pressure will be automatically stopped and the air in the tank will be automatically discharged. The test personnel can open the tank cover to take out the test sample.
7. Automatic type testing machine ---- adopts imported Matsushita brand "pressure sensor" to automatically control the test pressure in the tank, with control accuracy of ± 0.002Mpa and display accuracy of 0.001Mpa.
Technical Parameters:
|
Model
|
BND-IPX8-10Z-20L
|
BND-IPX8-30Z-20L
|
BND-IPX8-30Z-30L
|
|
Pressure control
|
AUTO control
|
AUTO control
|
AUTO control
|
|
control accuracy
|
±0.0002 Mpa（Auto）
|
±0.002 Mpa（Auto）
|
±0.002 Mpa（Auto）
|
|
Pressure adjustment range
|
0.00-0.1Mpa
|
0.00-0.3Mpa
|
0.00-0.3Mpa
|
|
Test water depth range
|
0-10M
|
0-30M
|
0-30M
|
|
Exhaust Pressure of safety valve
|
0.15 Mpa
|
0.35 Mpa
|
0.35 Mpa
|
|
The maximum limit of pressure pressure
|
0.2Mpa
|
0.4Mpa
|
0.4Mpa
|
|
Accuracy
|
0.0001Mpa
|
0.001Mpa
|
0.001Mpa
|
|
The thickness of the tank
|
15mm
|
15mm
|
15mm
|
|
thickness of flange
|
20mm
|
20mm
|
20mm
|
|
diameter of the tank
|
270mm
|
270mm
|
270mm
|
|
height of water level
|
300mm
|
300mm
|
500mm
|
|
Outer size
|
E500*D550*H600mm
|
E500*D550*H600mm
|
E500*D550*H800mm
|
|
Material of tank
|
SUS304#+Transparent plexiglass
|
|
Control time
|
0－999Min
|
|
Protection function
|
pressure safety protection,anti creeping switch
|
|
voltage
|
AC220V
|
|
Power (w)
|
100W
|
|
weight
|
40KG
|
40KG
|
45KG
|
|
Standard
|
IEC60529:1989+A1:1999、GB4208-2008、GB7000.1（IPX8)
|
|
