JIS D0203 Rain And Spray Test Chamber
Name:JIS D0203 Rain And Spray Test Chamber
Type:BND-JIS-1000L
Manufacturer:Standard:JIS D 0203 Internal Dimensions (mm):1000*1000*1000 D*W*H Rain Nozzle:2 holes Specimen to Nozzle:Approx.400mm R1 Water Flow Rate:1.9L/min. R2 Water Flow Rate:3.3L/min. S1 Water Flow Rate:24.5L/min S2 Water Flow Rate:39.2L/min Name:JIS D 0203 Rain Test Chamber
Product Description:

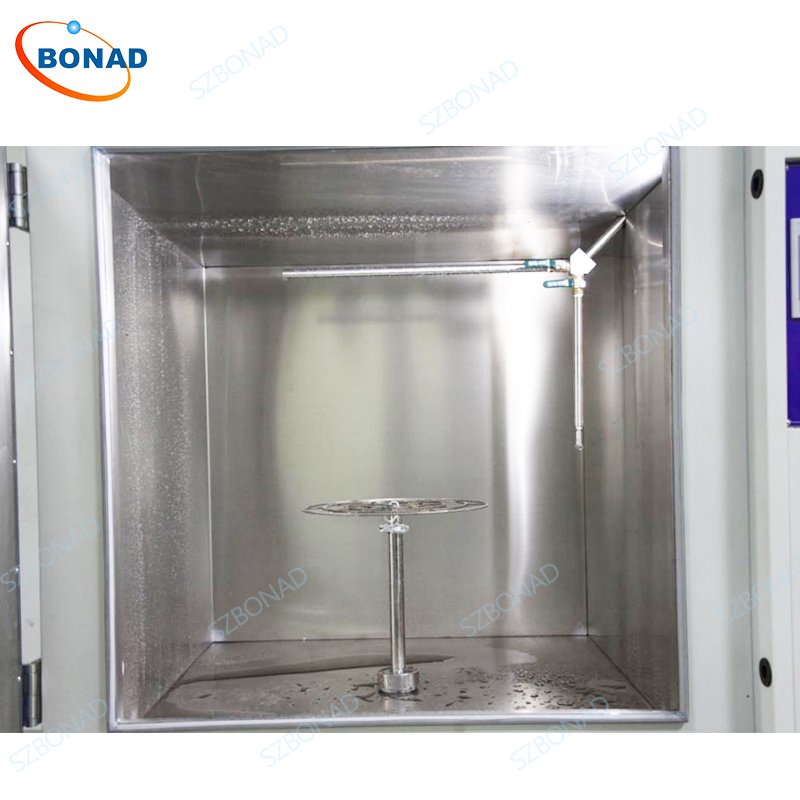

JIS D 0203 Rain And Spray Test Chamber

Application Background

Natural water sources like rain, seawater, and river water can cause significant damage to products and materials, leading to substantial economic losses annually. This damage includes corrosion, fading, deformation, strength reduction, swelling, and mold growth. Electrical products are particularly vulnerable as rain-induced short circuits can lead to fires. Therefore, conducting a shell protection water test for specific products or materials is an essential procedure.

General Application Areas

This equipment is widely used in testing outdoor lamps, household appliances, auto parts, and other electronic and electrical products. It meets the test requirements of R1, R2, S1, S2 in the JIS D0203 standard.

Features:

1. Standard Compliance: Suitable for R1/R2/S1/S2 watering tests as per Japanese standard JIS D0203.
2. Durable Construction: The shell is made from high-quality domestic steel plate with a painted surface for durability and aesthetics.
3. Rust-Resistant Inner Box: Made from SUS304# stainless steel to ensure long-term use without rusting.
4. Integrated Water Tank: Includes a circulating water tank with low water level alarm detection.
5. Observation Window: Transparent tempered glass window on the door with LED lighting inside for easy observation of test conditions.
6. Precision Motor Control: Uses a high-quality domestic stepping motor to control coil speed accurately at 23 revolutions per minute (RPM), adjustable via touch screen.
7. Adjustable Flow Rate: The flow rate of the coil can be adjusted on the panel.
8. Versatile Turntable Drive: High-quality stepping motor allows speed and angle adjustments via touch screen; supports forward and reverse rotation to prevent winding during power-on tests.
9. Customizable Test Time: Test duration can be set between 0-999 minutes using the touch screen.
10. High-Precision Filtration: Standard filters effectively remove impurities from tap water; replaceable filter elements.
11. Advanced Control System: Features a 7-inch touch screen + Panasonic PLC; electrical components from reputable brands like LS and Omron ensure reliability.

Technical Parameters:

Parameters

Values

Inner box size

Length 1000Depth 1000Height 1000mm

External dimensions

Approximately length 1450* depth 1220* height 1920mm

Turntable diameter

400mm

Maximum load-bearing capacity

50KG

Lifting height of turntable

500-800 mm

Turntable speed

1 -23r/min (precisely adjustable)

Turntable rotation method

Always forward / forward and reverse alternately

Testing time

0-999 min

Total mass of equipment

About 250kg

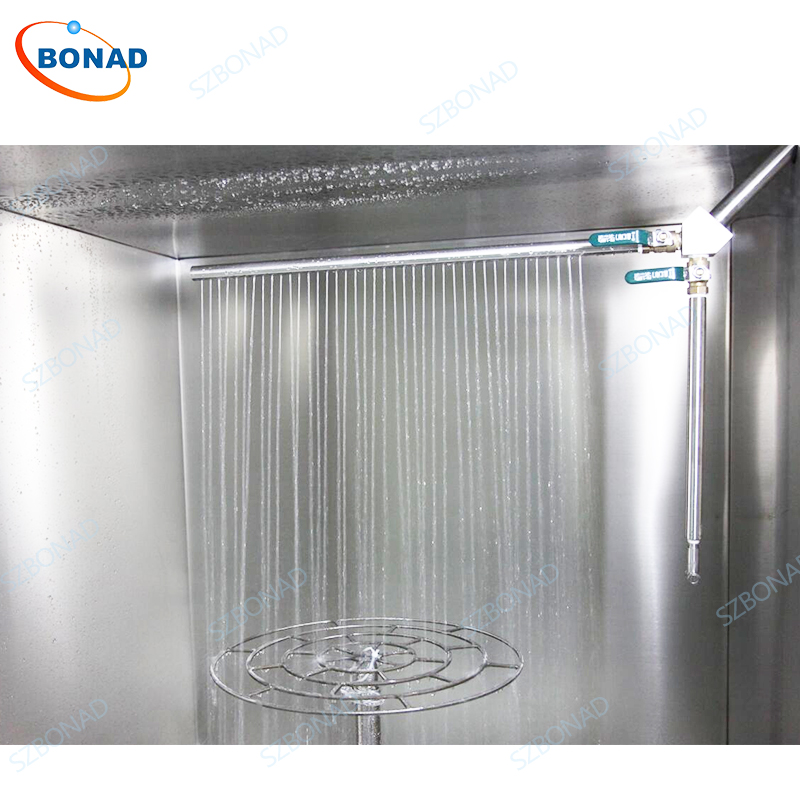

Japanese standard R1/R2- technical parameters

Sprinkler test coil

Strictly customize according to the requirements of JIS D0203 sprinkler test drawings

Water pressure

R1: 0.01MPa,

R2: 0.03MPa,

pressure can be set

Water spray flow

R1: 1.9L/min,

R2: 3.2L/min,

only display the minimum flow

Spray hole

See the picture, meet the requirements of JIS D0203 sprinkler test

Number of spray holes

2 pcs

Water spray timing range

0~99h59min, can be set

Sprinkler pipe rotation

around its axis

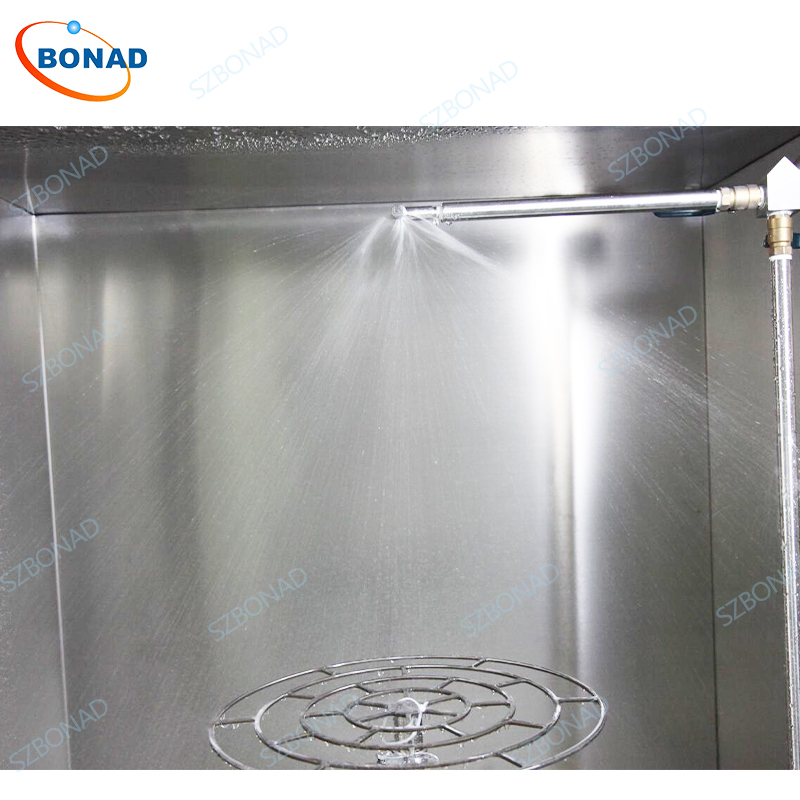

Japanese standard S1/S2- technical parameters

Water spray test coil

Strictly customize according to the requirements of JIS D0203 water spray test drawings

Water pressure

S1: 0.1MPa, S2: 0.3MPa, pressure can be set

Water spray flow

S1: 24.5L/min, S2: 39.2L/min, only show the minimum flow

Diameter of spray hole

Φ1.2mm

Number of spray holes

40 pcs

Water spray timing range

0~99h59m, can be set

Sprinkler pipe rotation

around its axis

Electrical parameters

Equipment power

380V;50Hz

Test sample power

220V

Equipment power

1.0KW

Safety protection function

Leakage protection, water shortage protection, short circuit protection
